Distributed Systems

A collection of distributed systems projects completed for CS328 at SUSTech, spanning three interconnected components: a custom Java RMI-style framework built without using java.rmi, a Docker-based multi-service deployment, and a PySpark pipeline analyzing ~970,000 real-world parking records.

View on GitHub

Highlights

• Implemented a Java RMI-style framework from scratch — service registry, dynamic proxy stubs (java.lang.reflect.Proxy), skeleton threading, and serialized InvocationMsg/ReturnMsg over sockets — without using java.rmi
• Demonstrated the framework with a concrete MatrixCalculator remote service, with server and client communicating through the custom registry and stub layer
• Containerized the full system with Docker multi-stage builds and Docker Compose; three isolated services (registry, server, client) discover each other via environment variables
• Processed ~970,000 real-world parking records with PySpark, producing five analytical outputs including time-windowed utilization rates and Spark DAG visualizations
• Applied CheckStyle across the Java codebase (~700 lines) to enforce code quality standards

MyRMI — Remote Method Invocation from Scratch

The centerpiece of the work is a Java RMI-style remote invocation framework implemented without the built-in java.rmi library. Every layer of the RMI stack was constructed by hand:

• Registry — RegistryImpl handles object bind and lookup; LocateRegistry provides the client-facing factory; registry calls are themselves proxied over the network via RegistryStubInvocationHandler
• Stubs — StubInvocationHandler implements java.lang.reflect.InvocationHandler, intercepting any method call on a remote interface and serializing it into an InvocationMsg for transmission
• Skeletons — SkeletonReqHandler threads receive incoming messages, deserialize them, dispatch the call via reflection, and return the result as a ReturnMsg
• Messages — InvocationMsg and ReturnMsg carry method name, argument types, argument values, and return value over a socket connection
• Exceptions — RemoteException, AlreadyBoundException, and NotBoundException mirror the standard RMI exception hierarchy

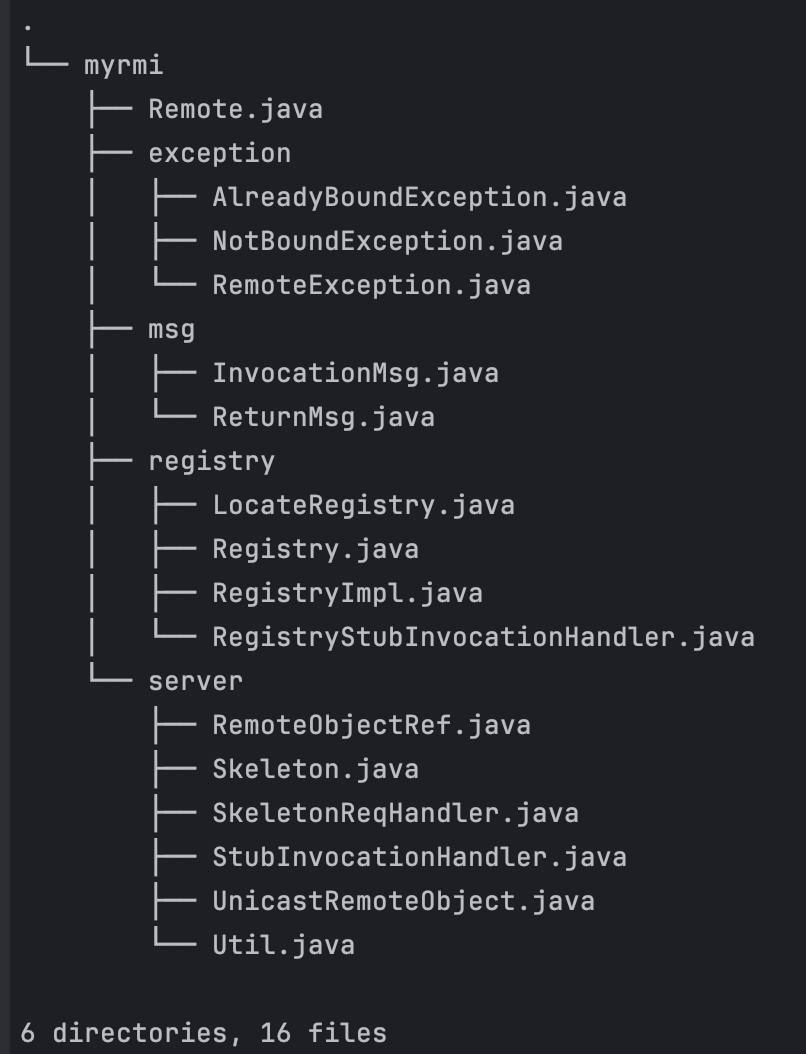

Source layout: 16 Java files across 6 packages

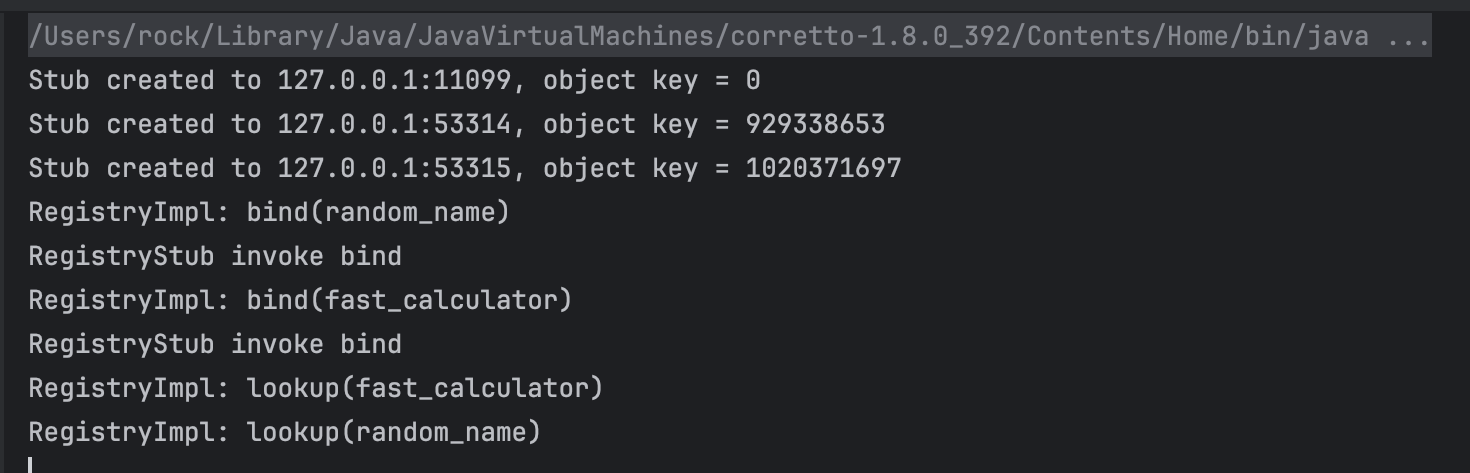

Service-side log: stub creation, registry bind and lookup in action

The test service exposes a MatrixCalculator remote interface with two implementations, allowing multiple services to be registered and resolved by name through the same registry instance.

MyRMI_Docker — Containerized Deployment

The framework was extended into a realistic multi-service deployment using Docker and Docker Compose. Registry, server, and client each run as an isolated container:

• Multi-stage Dockerfile per service: Maven compiles in the build stage; a minimal OpenJDK image runs at runtime
• docker-compose.yaml defines startup order (registry → server → client) and inter-service dependencies
• Service discovery uses environment variables (REGISTRY_HOST, SERVER_PORT) — no hardcoded addresses

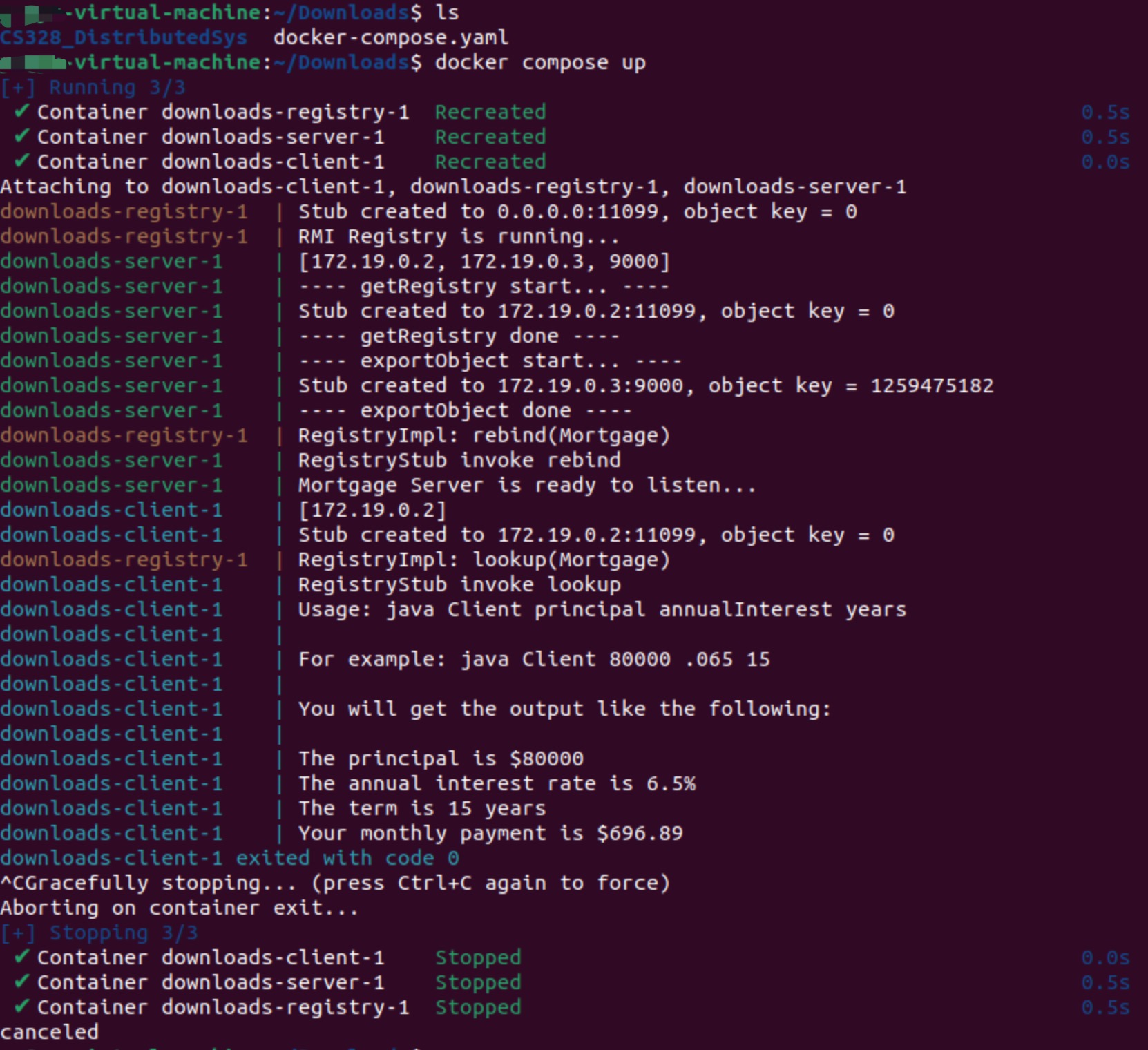

All three containers starting and completing an end-to-end RMI call — registry binds a Mortgage service, client looks it up and executes a remote calculation

SparkProcessing — Large-Scale Parking Data Analysis

A PySpark pipeline analyzing Shenzhen parking records (~970,000 rows, 1,930 berths, 43 street sections).

Five analytical tasks:

1. Berth count per street section
2. Unique berth-to-section mappings
3. Average parking duration per berth
4. Hourly utilization rate with percentage breakdown
5. Peak-hour identification across sections

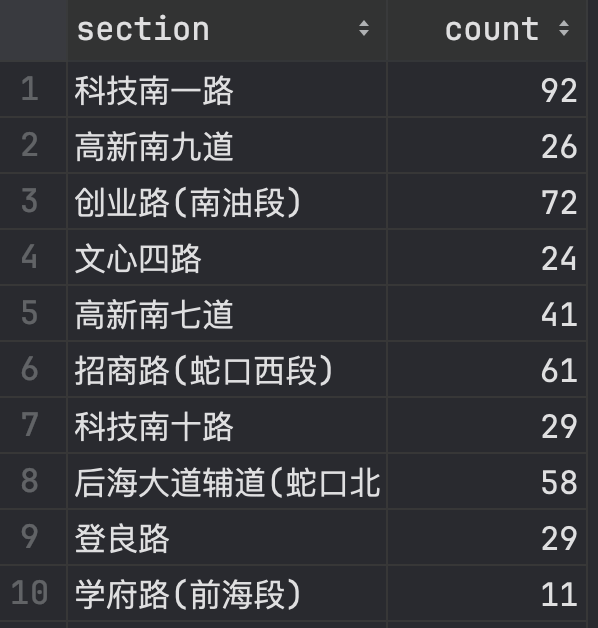

Sample output: berth count by street section

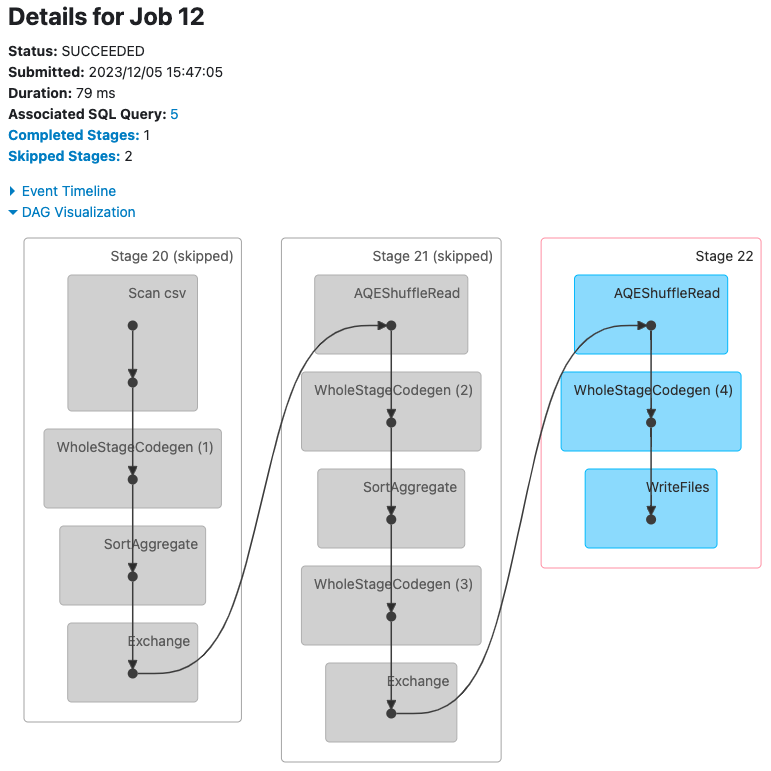

Spark DAG for one task — earlier stages (CSV scan, sort-aggregate) are skipped due to result caching; AQE optimizes the final shuffle
